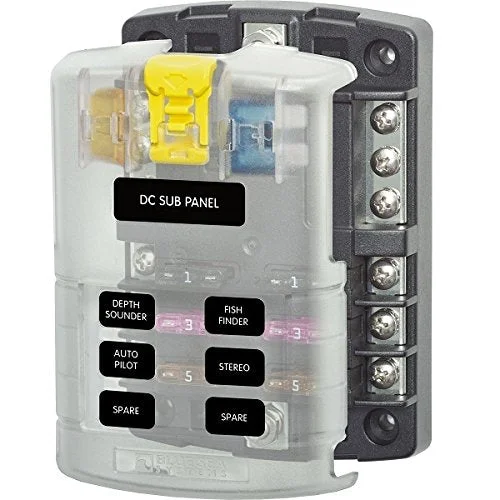

Amrb-5025 Blue Sea St Blade Fuse Block W/ Negative Bus – 6 Circuit

Description

Blue Sea St Blade Fuse Block W/ Negative Bus And Cover-6 Circuit Features: Positive Distribution Bus With #10-32 Stud Can Be Used For 24-Hour Circuits Models Available With Or Without A Cover Cover Satisfies Abyc/Uscg Requirements For Insulation, Incorporates An Easy To Open Push Button Latch Providing Easy Access To Fuses, Storage For Two Spare Fuses, And Label Recesses That Accept Blue Sea Systems’ Small Format Labels For Circuit Identification Fuse Blocks With Covers Include 20 Write-On Circuit Labels Tin-Plated Copper Buses And Fuse Clips Accepts Ring Or Spade Type Terminals Accepts Ato And Atc Fast Acting Blade Fuses Fuses Sold Separately Specifications Circuits 6 Maximum Amperage 100A Per Block 30A Per Circuit Maximum Voltage 32V Dc Mounting #8 Screw (M4) Negative Bus #10-32 Stud Positive Bus #10-32 Stud Recommended Torque 24 In-Lb (2.71 Nm) Screw Terminal Type #8-32 Screws With Captive Star Lock Washer Weight 0.55Lb (0.25 Kg)
