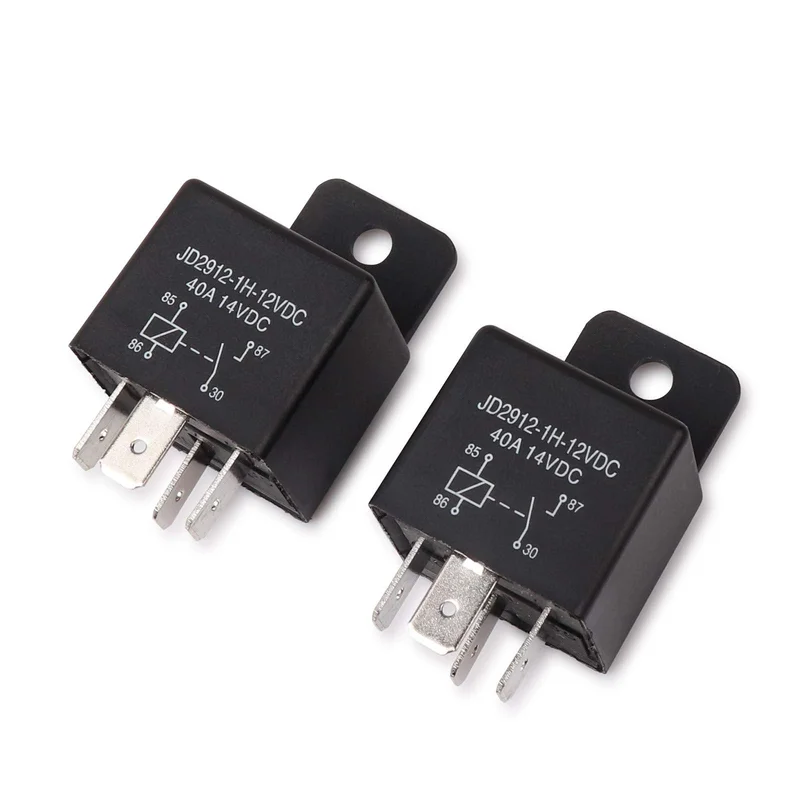

Ehdis Car Relay 4 Pin 12V 40Amp Spst Model No.: Jd2912-1H-12Vdc 40A 14Vdc, Auto Switches & Starters,Pack Of 2

Description

Contact Data: Contact Material: Agsno12 Contact Form: 1Z(C) 1H(A) Contact Ratings: No: 40A 72Vdc Contact Resistance: 100Mmax At 6Vdc 1A Max Switching Current: 40A Max Switching Power: 560W Life Expectancy Electrical: 100,000 Operations (At 30 Operationsmin) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(Vdc): 12V Coil Resistance (18W): 80 Max Operate Voltage (Vdc): 6580 Mix Release (Vdc): 1236 Max Applicable Voltage (Vdc): 14 Characteristics: Temperature Range: -30Ac +80Ac Vibration Resistance: 1055Hz, 15Mm Shock Resistance: Operations Extremes: 10G Damage Limits: 100G Humidity: 40%85% Insulation Resistance: 100M Ohm Min At 500Vdc Safety Standard: Ccee Dielectric Strength Between Open Contacts: 500Vac (For One Minutesec) Between Contact And Coil: 750Vac (For One Minutesec) Operate Time: 7Ms Release Time: 5Ms Weigh: Approx 35G
