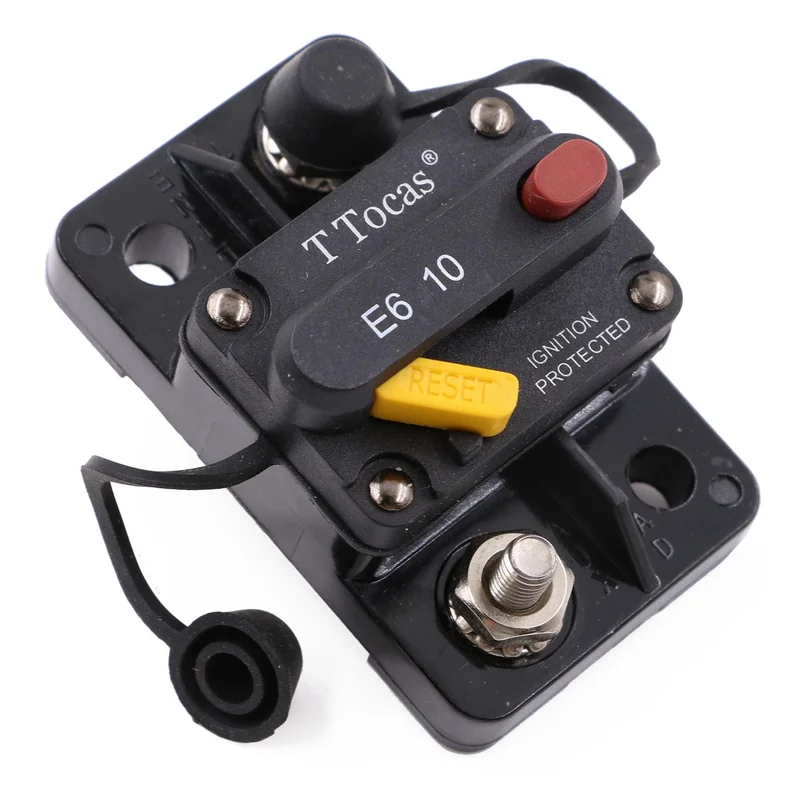

T Tocas 10 Amp Mini Circuit Breaker With Manual Reset Switchable 12V – 32V Dc Waterproof Ip66 10A Fuse Breakers

Description

Note:The Color Of The Reset Lever And Push To Reset Button Will Be Red Or Yellow(It Will Be In Random)Typically Used In Auxiliary And Accessory Circuits In Truck, Bus’, Rvs And Marine Applications. Others Include Battery Charger And Dc Audio System.Voltage:Up To 32Vdc Rated Current:Consult Factory Mountingwide:Surface Mount Reset Type:T3, Manual Operating Temperature:-32C (-25F) To 82C (180F) Interrupt Capacity:2,500A @ 14Vdc (25-200A) 1,500A @ 32Vdc (10-60A) 1,500A @ 14Vdc (225A-300A)Regulatory Sepcification:Sae J1625; Sae J1171; Ul 1500; Abyc E-11; Ce; Ip67Termination: #10-32 Thread Stud Body:Ul-Rated 94V0 Thermoset Plastic Storage Temperature:-34C (-30F) To 149C (300F)Packing List: 1 * 10 Amp Circuit Breaker With Manual Reset
